Fuyu Fsl40 Linear Guide Table Ball Screw Motion Cnc Linear Guide Stage Actuator Motorized Nema 23 Stepper Stroke
$96.97

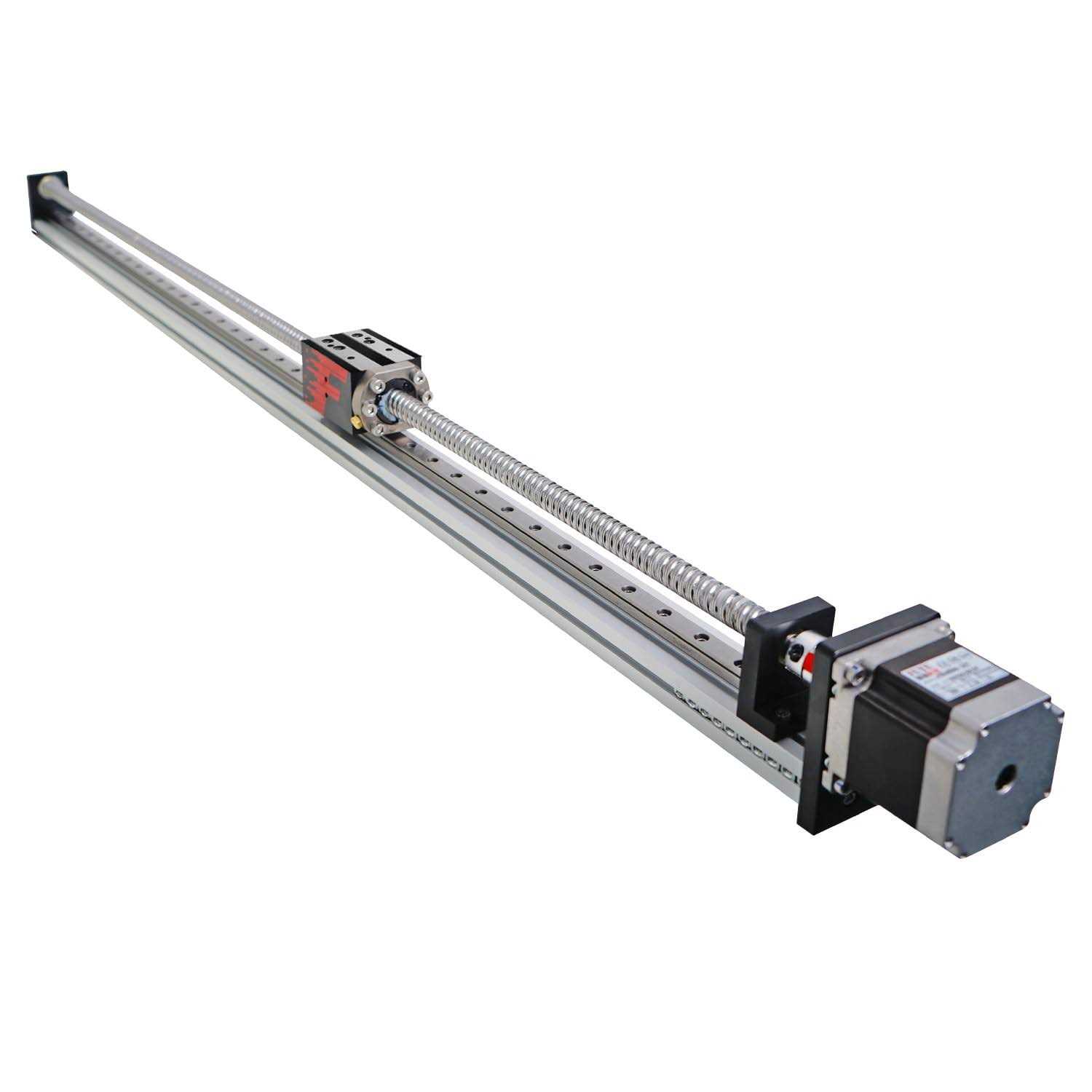

Fuyu FSL40 Linear Guide Table Ball Screw Motion CNC Linear Guide Stage Actuator Motorized NEMA 23 Stepper Motor[1000mm Stroke]

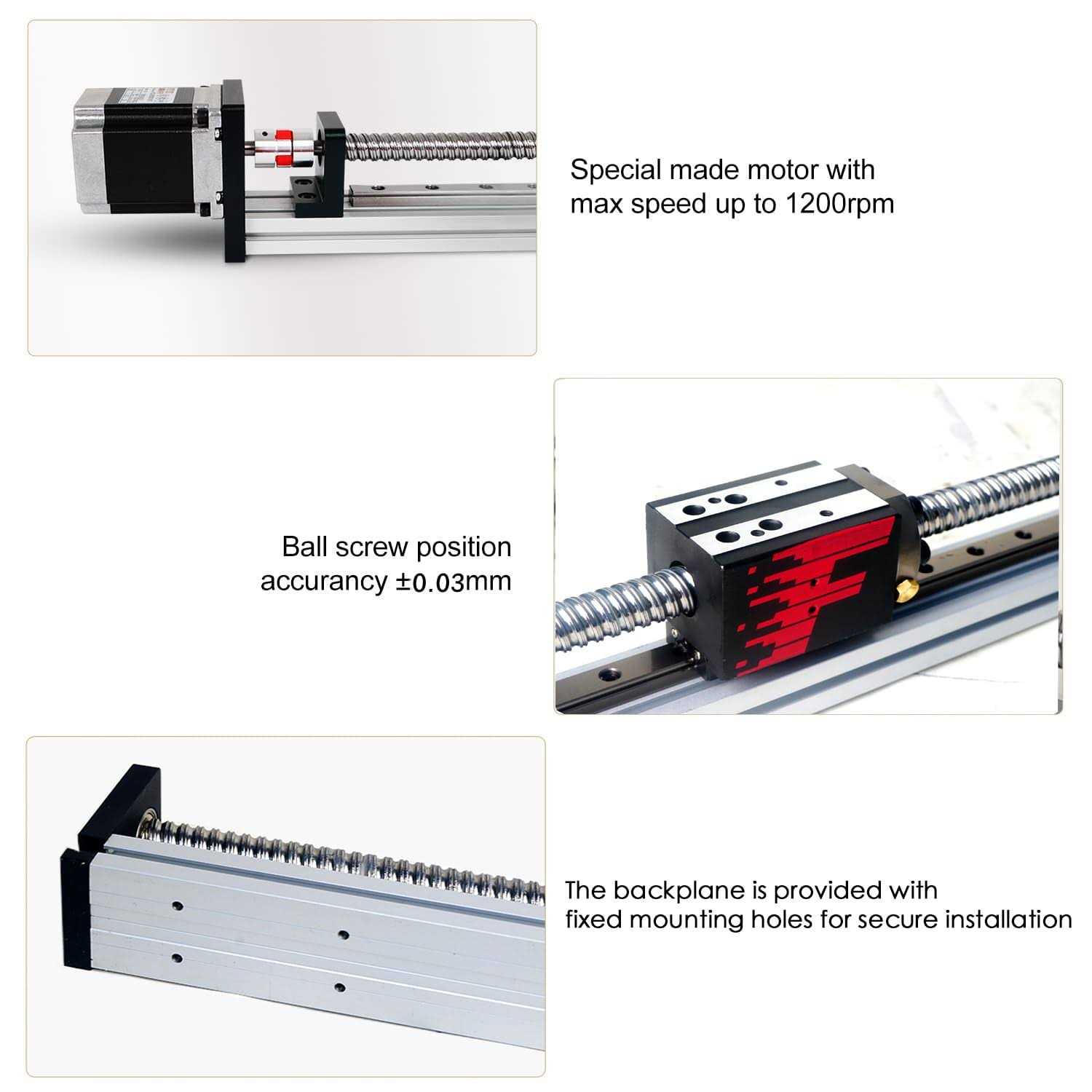

- Special made nema 23 stepper motor with max speed up to 1200 rpm.
- Quality ball screw with accuracy up to ±0.03mm,also low noise when working.Oxided aluminum avoid rusting,extra support unit enhanced stability.
Description

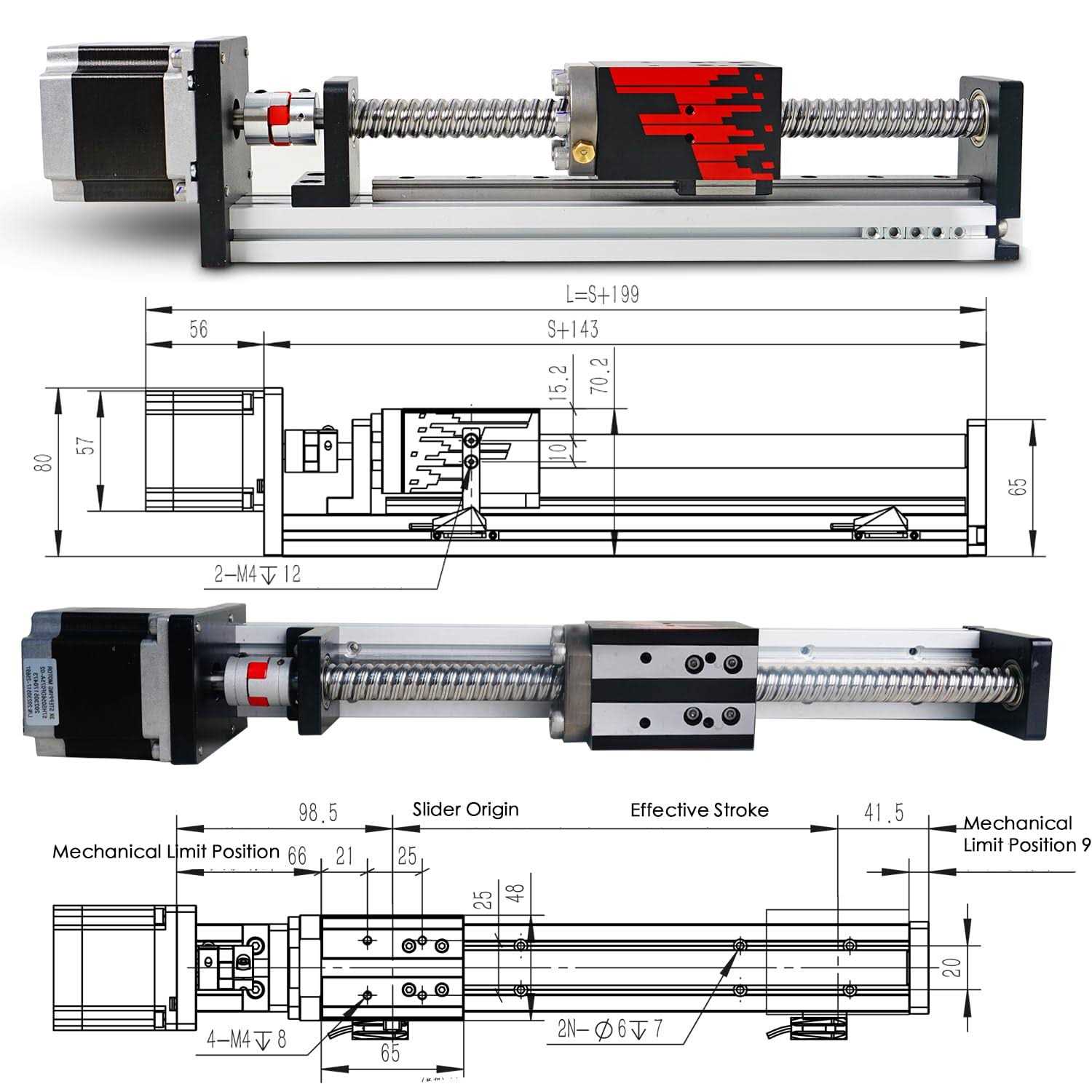

Linear Motion Actuators by FUYU. Details:Effective Stroke: 1000mm Total Length: 1199mm Tatal Height: 80mm Slide Width: 40mm Maximum Horizontal Load: 20kg Maximum Vertical Load: 10kg Max Horizontal Speed: 230mm/s[max loadings] Max Vertical Speed: 50mm/s[max loadings] Ball Screw Model: G1610 Ball Screw Accuracy Class: C7 Stepper Motor Parameter: Step angle:1.8° Rated Voltage: 1.7v Motor flange size: 57mm Motor length: 56mm Holding torque: 0.95 N.m Current: 2.0A Resistance:1.
